Key Technical Features

1. High Heat Transfer Efficiency with Minimal Pressure Loss
        The exchanger achieves a superior heat transfer coefficient while maintaining low pressure drop, optimizing performance across various applications.
2. Versatile Configuration for Process Adaptability
        The design allows flexible flow combinations to meet specific process requirements, enhancing operational efficiency.
3. Clogging and Fouling Resistance
        Wide channels prevent the deposition of solid particles or suspended materials, ensuring smooth operation and easy cleaning.

4. Excellent Pressure and Temperature Resistance
        The welded structure eliminates the limitations of gaskets, making it ideal for handling high-temperature and high-pressure media.

5. Advanced Welding Technology
        All plates are made from high-quality alloy materials and welded using cutting-edge techniques. This ensures no cross-contamination or leaks between media, with resistance loss reduced to 1/5 of shell-and-tube exchangers and 1/3 of spiral heat exchangers.
6. Unique Dimple Plate Design
        The dimpled plates generate turbulence at low flow rates, improving heat transfer efficiency, lowering costs, and reducing energy consumption.
7. Compact and Energy-Efficient Design
        The exchanger is space-saving and energy-efficient, with material options including stainless steel (304, 316L, 321), titanium, and other corrosion-resistant alloys.
8. Customizable for Various Applications
        Modular designs and a wide range of materials allow customization based on the specific corrosion resistance requirements of different media.

Technical Specifications

• Design Pressure: 1.0–1.5 MPa
• Design Temperature: Up to 300°C
• Maximum Heat Exchange Area per Unit: 650 m²
• Plate Thickness: 1.0–2.0 mm
• Plate Length: 1000–6000 mm
• Plate Width: 600–1000 mm

Optimized Flow Velocity for Performance

1. Reasonable Flow Velocity Selection
   Proper flow velocity is critical to heat transfer performance, pressure loss, and resistance to wear or corrosion. Wide channel flow rates typically range from 0.9 to 1.3 m/s, ensuring sufficient material movement to prevent deposition or clogging.
2. Ease of Installation and Maintenance
   With a modular structure and detachable cover plates, inspections and mechanical cleaning can be performed conveniently, reducing downtime and enhancing safety.

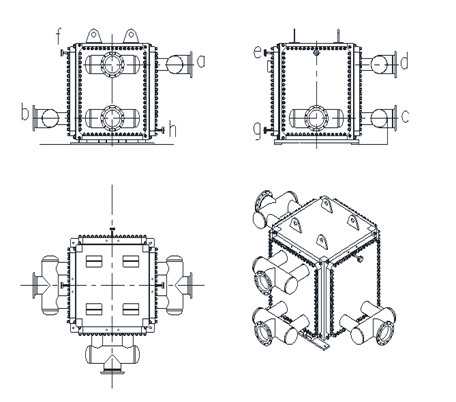

Working Principle and Flow Patterns

1. Heat Exchange Mechanism
   Each heat exchange plate features a double-sided dimpled design to enhance turbulence and heat transfer. Plates are welded in pairs to form alternating channels for hot and cold fluids, ensuring efficient counterflow heat exchange.
2. Flow Configuration
   Fluids typically enter from the bottom and exit at the top to prevent sedimentation and erosion. This design extends operational uptime and minimizes the frequency of cleaning.

Flow progresses as follows:

• Material Inlet → Distribution Header → Plate Pack
• Reverse flow through alternating channels achieves maximum thermal efficiency.

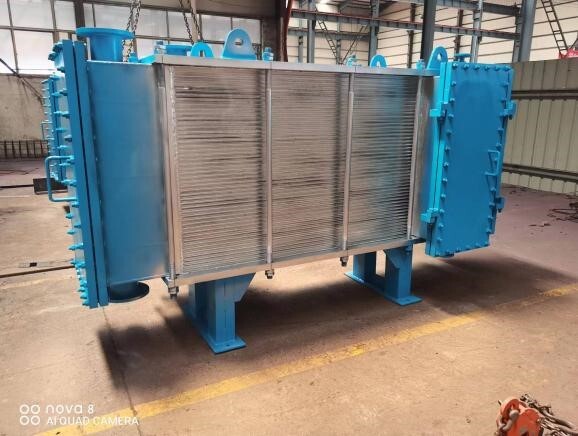

Advantages of Fully Welded Wide Channel Plate Heat Exchangers

• High Efficiency: Heat transfer rates are 1–2 times higher than similar products.
• Durability: Resistant to high temperatures, pressures, and corrosive media.
• Compact Design: Saves installation space and reduces structural costs.
• Low Maintenance Costs: The non-clogging design and easy cleaning reduce downtime.
• Energy Savings: Optimized design reduces energy consumption and operating costs.

Applications

1. Coal Chemical Industry: Handles viscous and particulate-laden streams effectively.
2. Wastewater Treatment: Processes fluids with suspended solids and fibers.
3. Metallurgy: Ideal for cooling or heating abrasive media.
4. Chemical Production: Suitable for complex and corrosive fluids.
5. Food and Beverage: Processes high-viscosity materials like syrups and sauces.

Conclusion

The Fully Welded Wide Channel Plate Heat Exchanger is a cutting-edge solution for demanding industrial environments. Its robust design and advanced features ensure high efficiency, reliability, and adaptability. For industries requiring efficient heat exchange in challenging conditions, this equipment delivers unmatched performance and value.
